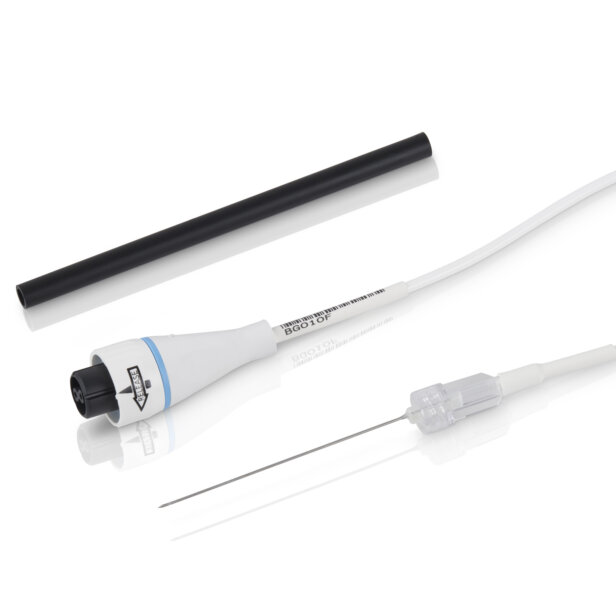

NX-NP/O/E Oxygen-only needle-encased sensor

23G surgical steel-encased sensor featuring greater physical robustness, suitable for localized oxygen measurements from virtually any tissue type, or for in vitro dissolved oxygen applications. Oxygen detection via lateral 'windows' distal from the sensor tip. Larger tissue sampling area/volume than bare-fibre type sensors (1 mm²).

Tissue placement: directly, or via introducer (e.g. Angiocath®)
T-90 response time approx. 3 min
Manual temperature compensation required
Fixed/potted Luer

Dimensions:
Needle diameter: approx. 650 µm
Exposed needle length: 6 cm
Total sensor length: 2.5 m

Reusability: Good
