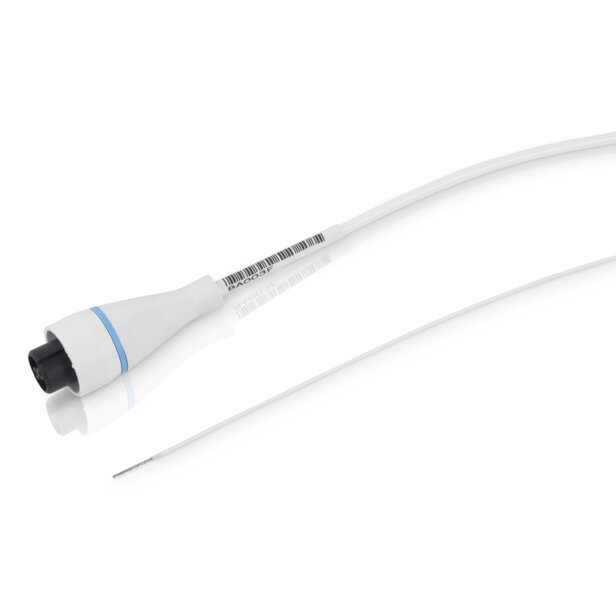

NX-LAS-8/O/E Oxygen-only large area sensor (8 mm²)

Sensor tip shielded within an extended 23G surgical steel cage, oxygen detection via lateral 'windows', very large tissue sampling area/volume (8 mm²) for area-averaged tissue oxygen measurements.

Tissue placement via introducer (e.g. Angiocath®)
T-90 response time – approx. 3 min
Manual temperature compensation required

Dimensions:
Tip cage diameter: 630 µm
Tip cage length: 12 mm
Sleeving diameter: 820 µm (first 50 cm)
Total sensor length: 2.5 m

Reusability: Good
